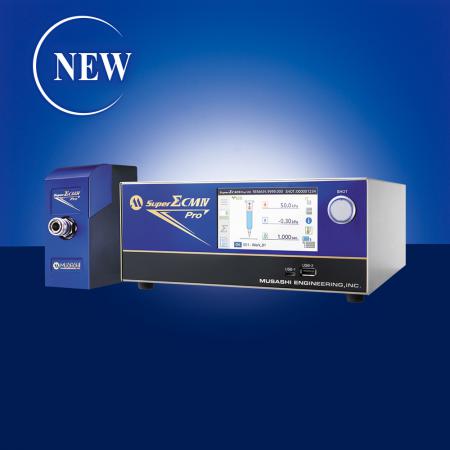

Pursue the ultimate productivity
Equipped with independent AIR OUT unit and temperature controller.
In addition to traditional features, ΣCMIV is even more powerful!
Point
■The independent AIR OUT unit maintains the highest discharge responsiveness and discharge accuracy even in long piping environments!
■Equipped with a temperature controller. Since both heating and cooling of the syringe can be performed, fluctuations in the amount of application due to rising liquid temperature can be suppressed.
Outline Specification ( musashi dispenser SuperΣCMⅣ Pro )
| Name | Full-function digital control Musashhi Dispenser SuperΣCMIV Pro |
| Model | S-SIGMA-CM4P -CTR-V7-N | S-SIGMA-CM4P -CTR-V7-P | S-SIGMA-CM4P -CTR-V2-N | S-SIGMA-CM4P -CTR-V2-P | S-SIGMA-CM4P -CTR-V05-N | S-SIGMA-CM4P -CTR-V05-P |
| Spill pressure setting range When Σ function is ON | 30.0 ～ 700.0 [kPa] | 20.0 ～ 200.0 [kPa] | 5.0 ～ 50.0 [kPa] |
Spill pressure setting range When Σ function is OFF | 20.0 ～ 700.0 [kPa] | 5.0 ～ 200.0 [kPa] | 0.5 ～ 50.0 [kPa] |
| Output time setting range When Σ function is ON | Timed mode: 0.020 to 9999.999[s] (depending on tube length) Manual mode: 0.035 ～ 9999.999 [s] |
| Output time setting range When Σ function is OFF | 0.001 ～ 9999.999 [s] |
| Discharge mode | Timed mode, manual mode |
| Vacuum pressure setting range | 0.00～ -５.00 [kPa] |
| Main Functions | Automatic waterhead difference correction, automatic liquid leakage prevention, automatic residual volume warning, alpha correction, delta correction, residual volume display correction, vacuum pressure correction, discharge counter, stopwatch, interval discharge, discharge condition correction, autoclear, autoclear, autoclear, express shot, date and time, operation history, discharge pressure monitoring, self-diagnosis, ECO mode (*), sleep mode, I/O function allocation, password lock, display unit switching (kPa/bar), solenoid valve error, air pressure error, vacuum pressure error, copy, auto tuning, auto tuning |
| Signal specification | NPN | PNP | NPN | PNP | NPN | PNP |
| Number of channels | 400CH |
※ S-SIGMA-CM4P-CTR-V05-(N/P) does not support ECO mode (equivalent to ECO mode OFF).
