PTFE nozzle working under SUS guide TN-SUSG

It is power in high precision musashi dispenser of anaerobic liquid materials

It is power in high precision musashi dispense of anaerobic liquid materials

It is power in high precision dispense of anaerobic liquid materials

PTFE nozzle <br working under SUS guide TN-SUSG・It is most suitable for dispense of liquid material which cannot use Standard metal needles with high versatility.

・Guide made in SUS preventing blurring of stitch is belonging to.

Needle material: PTFE, guide material: SUS304, needle base material: Polyacetal
Gauge	Internal diameter mm	External diameter mm	Color	Model	Quantity
16	1.07	2.42	Ivory	TN-16G-□□L-13G-ΔΔL	One/1 pack
17	0.96	2.01	Yellow	TN-17G-□□L-14G-ΔΔL
18	0.86	2.01	Gray	TN-18G-□□L-14G-ΔΔL
19	0.68	1.82	Light green	TN-19G-□□L-15G-ΔΔL
20	0.56	1.67	Light pink	TN-20G-□□L-16G-ΔΔL
21	0.46	1.56	Light blue	TN-21G-□□L-17G-ΔΔL
22	0.38	1.22	Brown	TN-22G-□□L-18G-ΔΔL

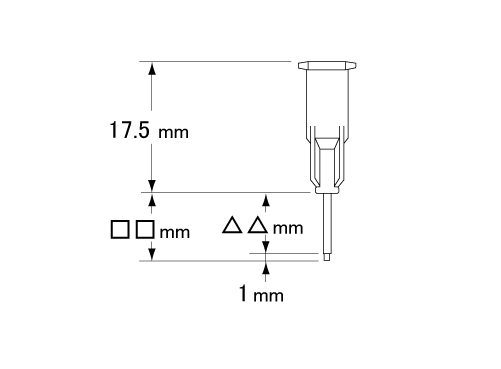

Note 1:
□□This is the length of the PTFE nozzle: 4≦□□≦50 (mm)
△△This is length of SUS guide: 3 <= △ △ <= 49 (mm)
(SUS guide has shorter 1mm than PTFE nozzle, and please appoint.)

Note 2:
PTFE nozzle working under SUS guide, please appoint length.
(example), in the case of PTFE nozzle 20mm in length of 19G, please appoint with "TN-19G-20L-15G-19L".

Needle material: PTFE, guide material: SUS304, needle base material: Polypropylene
Internal diameter mm	External diameter mm	Needle long 13.7mm	Needle long 26.4?	Color	Quantity
Internal diameter mm	External diameter mm	Model	Model	Color	Quantity
0.3	0.5	TN-0.3-13.7-SUSG	TN-0.3-26.4-SUSG	Pink	One/1 pack
0.2	0.4	TN-0.2-13.7-SUSG	TN-0.2-26.4-SUSG	Purple	One/1 pack
0.1	0.3	TN-0.1-13.7-SUSG	TN-0.1-26.4-SUSG	Orange	One/1 pack
